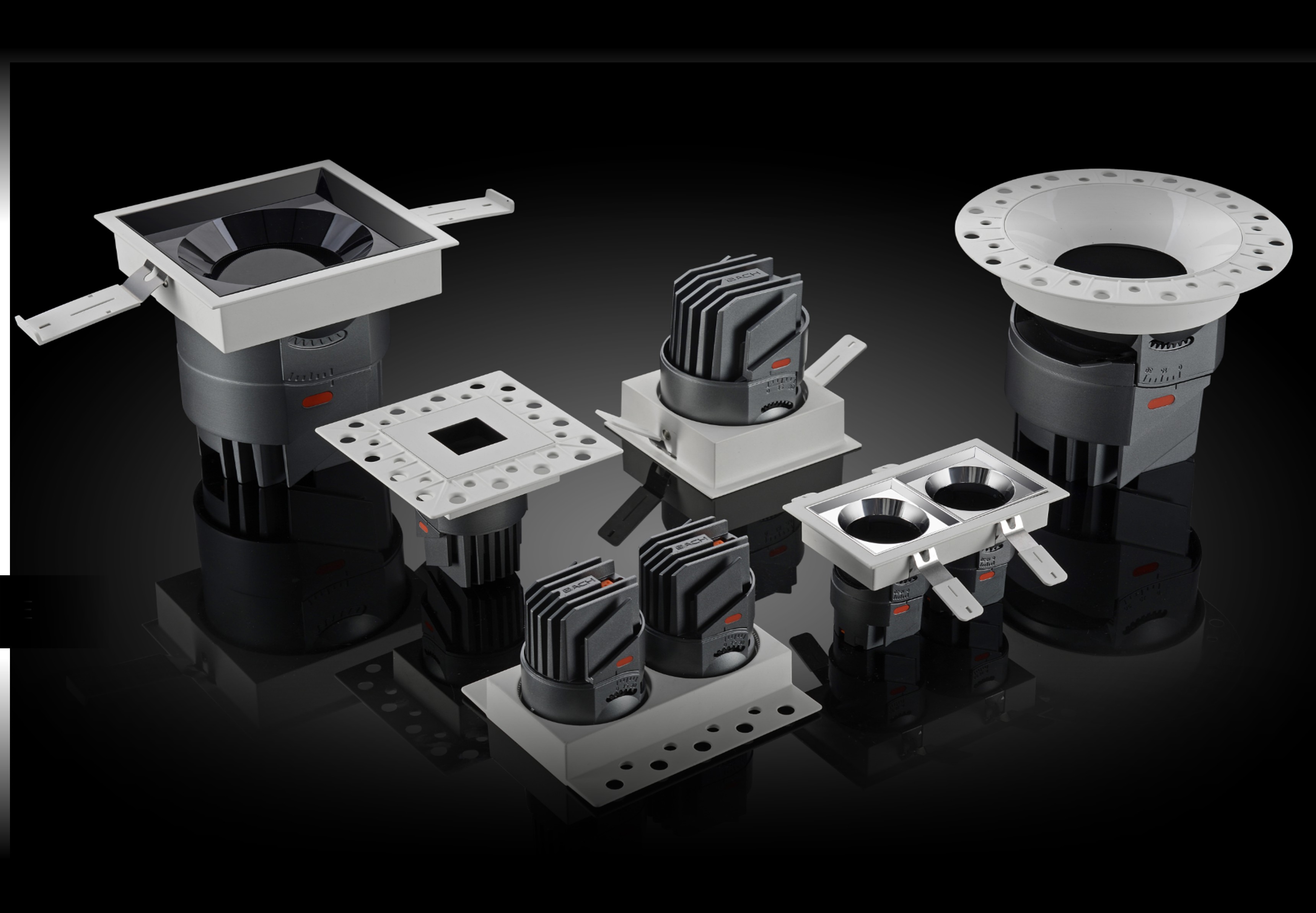

BACH 5s Family Mobile

BACH 5s SERIES

LIGHT TUNES ARCHITECTURE

Comprehensive and Capable Lighting Equipment

Complete Size Range

From Φ45mm accent lighting to Φ200mm high-ceiling solutions.

45mm
Φ45
Max 5W
55mm
Φ55
Max 7W
75mm
Φ75
Max 18W
105mm
Φ105
Max 24W
125mm
Φ125
Max 35W
150mm
Φ150
Max 60W

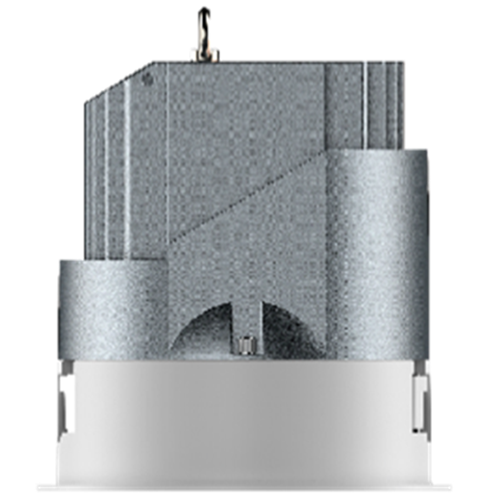

200mm
Φ200
Max 100W
← Swipe to compare sizes →

Height Application Guide

Perfect lighting levels from residential spaces to grand atriums.

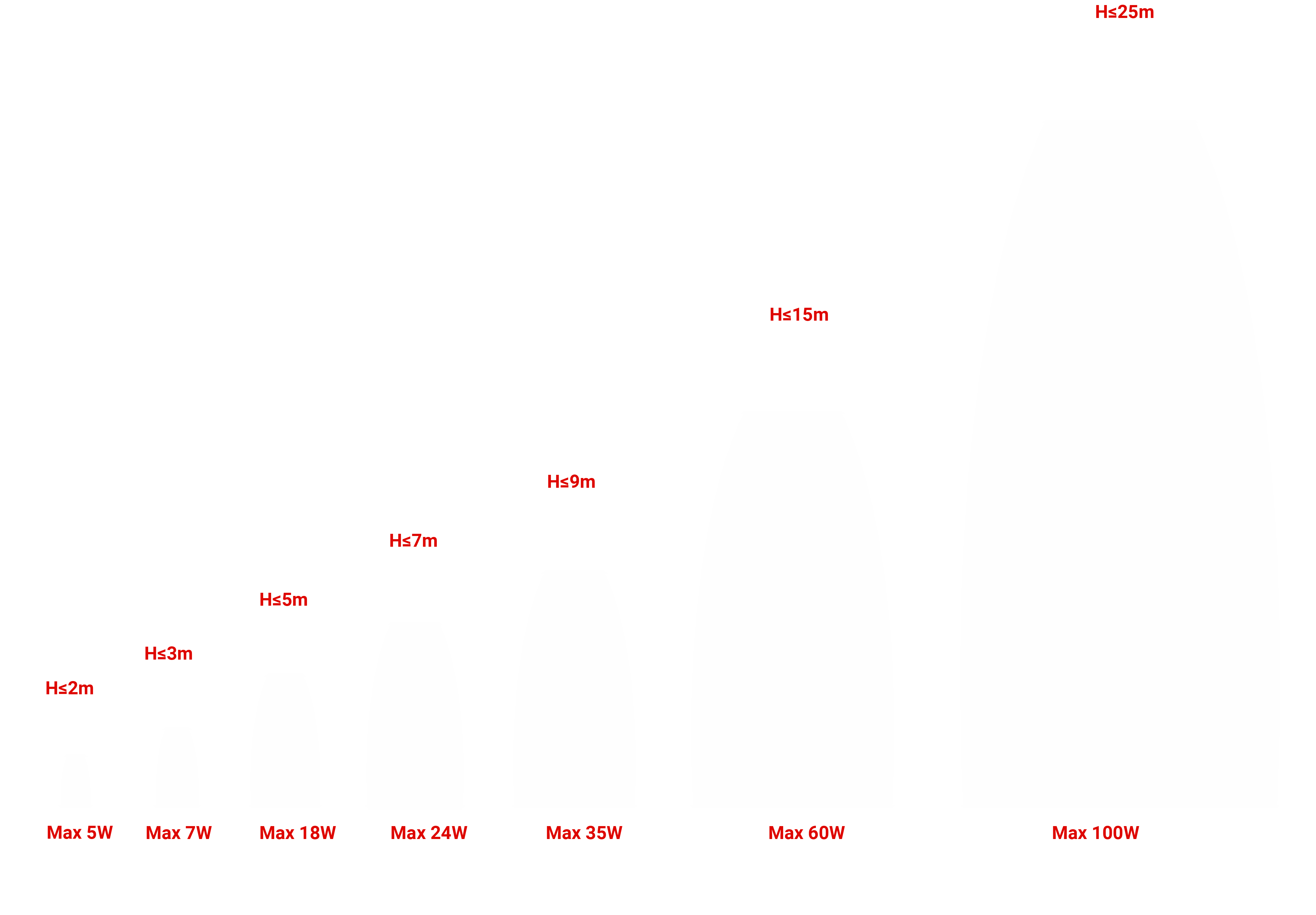

Height Application Guide Chart
OPTICAL INNOVATION

Redefining the
Wallwasher

Indirect beam optical design. Lateral light source installation utilizing the principle of optical reflection.

"Glare-Free" Zone

No visible glare in non-illuminated areas. Pure visual comfort for the observer.

Indirect Beam Optics

Creatively uses side-mounted light sources to improve light efficiency and uniformity.

Easy Commissioning

Pull ring structure allows for easy on-site lighting adjustments and horizontal rotation.

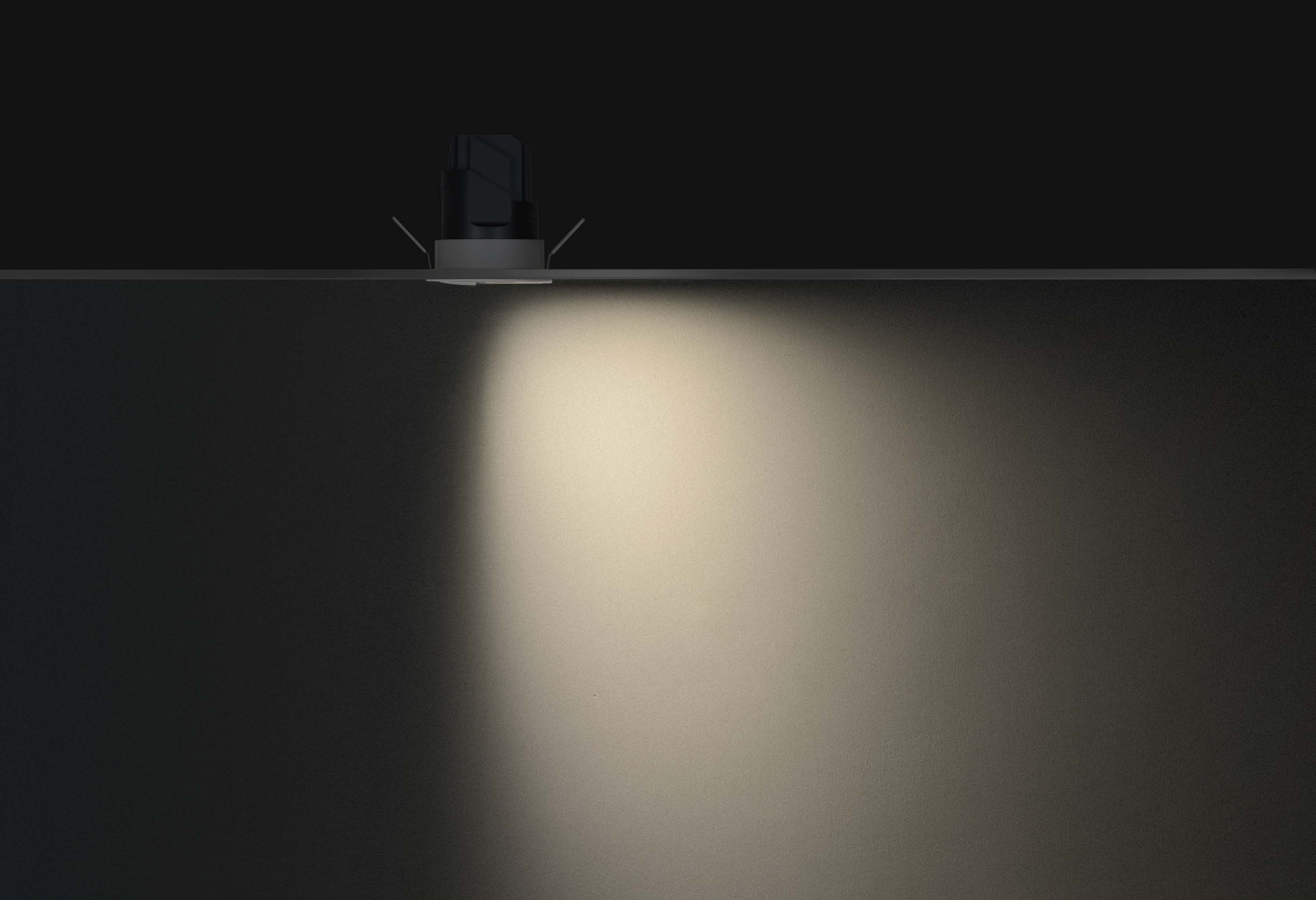

Wallwasher Glare Free Diagram

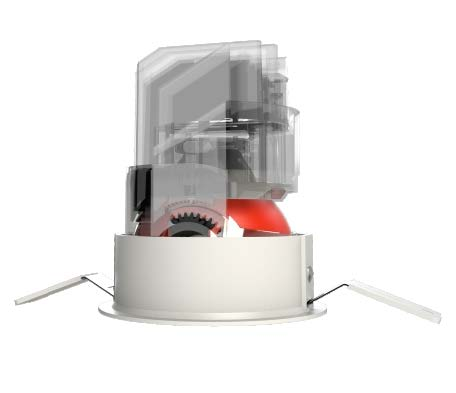

Structure Exploded View

User-Friendly Design

Designed for easy installation and maintenance without compromising optical performance.

1
Visualized Adjustment

Clear scale markings for accurate and consistent tilting.

2
No Light Leak

Precise mechanical structure prevents backlight leakage.

3
Narrow Trim

1.5mm ultra-thin trim for seamless integration.

5 Versions for Every Need

STANDARD

Accurate tilt and no light leak. The versatile choice.

  • • Cut-out: Φ45-150mm
  • • Visualized Adjustment
  • • User-friendly Assembly

AIR

Twin lens system with compact heatsink for limited spaces.

  • • Cut-out: Φ55-105mm
  • • Twin Lens System
  • • High cost-performance

PRO

Digital zoom and tunable white. Magic of light.

  • • Digital Zoomable
  • • Tunable White (2700K-6000K)
  • • Cut-out: Φ150mm

HIGH CEILING

For opera houses and airports.

  • • 60W - 100W High Power
  • • High Efficacy (100lm/W)
  • • IP65 / IP67 Driver

WALLWASHER

Revolutionary "Glare-free" wallwashing experience.

  • • Indirect Beam Optical Design
  • • Horizontal Rotation
The "Glare-free" Zone:
No visible glare from non-illuminated areas, ensuring pure visual comfort.

Specifications Matrix

Cut-out Max Power Height Rec. Versions
Φ45mm 5W ≤ 2M Standard
Φ55mm 7W ≤ 3M Standard, Air
Φ75mm 18W ≤ 5M Standard, Air, Wallwasher
Φ105mm 24W ≤ 7M Standard, Air, Wallwasher
Φ150mm 35W / 60W ≤ 15M Standard, Pro, High Ceiling
Φ200mm 100W ≤ 25M High Ceiling

Swipe left to view full table on mobile.
